DEKO DC-2200

DEKO

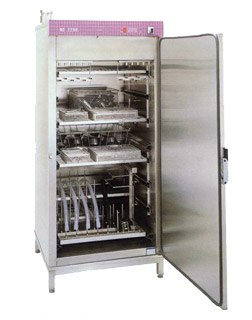

DC-2200 Drying cabinet is designed especially for drying surgical instruments, anaesthetic hoses & equipment, as well as other reusable items used in patient health care.

It is dimensioned particularly for use together with the Deko-2000 & D32 series washer disinfectors. The chamber can accomodate two full loads (4+4 shelves) from the washers. The sound and heat insulated double walls of the cabinet are made of AISI304 stainless steel. DC-2200 is available as a single door or pass-through model, left or right-hinged.

LARGE CAPACITY

DEKO 190 has a large wash chamber and capacity for automatic emptying and processing of 2 bedpans with lids and 4 urine bottles simultaneously. The integrated drop down shelf provides space for 4 hand wash basins or a mop bucket with seating ring. The shelf can also be utilised as a base to accommodate and process inserts and washing accessories e.g. kidney dishes, bowls, vases, toilet brushes / holders, as well as, various hollowware. Using optional holders and baskets enables the correct positioning and easy loading of various items, eg; suction jars & medicine pots, and extends the DEKO 190’s capacity and versatility.

SAFE AND SECURE

The door is locked securely throughout the cycle. A green indicator will advise when the door is unlocked for opening. An audible indicator may be added to draw attention to the ending of the cycle.

In order to guarantee that the values of the critical process variables were truly obtained and as programmed, the Deko 190 is equipped with the verification level A – independent temperature verification sensor.

Cleaning efficacy is increased by dosing automatically the precise pre-determined volume of detergent at the correct time of the wash cycle. The detergent container is safely positioned into the easily accessible housing. The intelligent control system monitors the washing pressure constantly and secures the achievement of the pre-set process values.

A low level detecting system will illuminate the red indicator to warn when the detergent volume is running low.

QUIET, EFFICIENT AND RELIABLE

The DEKO 190 occupies its space efficiently. One unit requires only W600xD630 mm of floor space. Connections to water, electricity and drain are provided with all necessary safety features. Regular control & maintenance of the machine is made quick and easy by the service mode of the microprocessor and the easily accessible components. Water is taken into the chamber from the integrated water tank. User and Maintenance Manuals include all relevant details and instructions required. Any information, advice, personnel training and service calls are attended to with the utmost dedication and urgency. Availability of spares is guaranteed for a minimum of 10 years after date of shipment and the complete programme and software lodged securely with an independent body.

Durability and reliability in continuous, heavy and busy institutional operating circumstances have been the key factors in the design of the Deko 190.
