DEKO D32

DEKO

Meeting the standards

The DEKO D-32 is designed and constructed to exceed the standard performance and design requirements stated in ISO/DIS 15883-1 Washer-disinfectors - Part 1: General requirements and in Part 2: Requirements and tests for surgical instruments, anaesthetic and respiratory equipment, hollowware, utensils, glassware etc., as well as, the Safety requirements stated in IEC 61010-2-45: Particular requirements for washer disinfectors used in medical, pharmaceutical, veterinary and laboratory fields.

Process results are guaranteed throughout:

• water pressure for washing is supplied by a high powered circulation pump
• pipework and the number of loading shelves fitted with rotating spray arms are calculated to have the maximum soil removal efficacy
• wide selection of disinfection temperatures and cycle times to secure the microbial killing impact
• fast HEPA filtered drying

Cycles can be altered to meet almost any special requirement, though the standard requirements are met with the fixed, tested and approved programs inserted by the manufacturer.

The washing spray patterns are delivered through five rotating spray arms and purpose designed racks to guarantee the contact with all surfaces and crevices of instruments with the most intricate design.

Quality at Glance

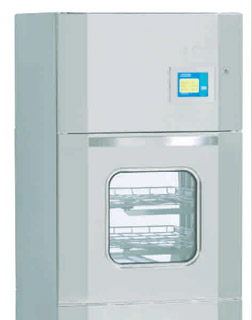

The DEKO D32’s compact dimensions are based on thorough ergonomic research and practical studies. With the working height of the doors, all controls at eye level and flexible usage of the wash chamber with individually removable shelves make the D32 simple and comfortable to work with.

With the horizontally front-opening door, separate transfer conveyors can be avoided and the loading and unloading is made easier safer and more hygienic. Any residual fluid dripping from the load is collected on the inner door surface, which is washed and decontaminated during each completed cycle.

The doors open & close smoothly with the assistance of gas springs and are locked securely throughout the cycle by an automatic locking system. Clear text on the display and a green indicator light will advise when the doors are unlocked for opening. An audible indicator may be added to draw attention to the ending of the cycle. Double-glazed, heat insulated and shockproof window allows a visual check upon the status in the wash chamber.

All parts of the machine and washing accessories coming into contact with the processed items are being cleaned and disinfected simultaneously and separate manual handling is unnecessary. Thanks to modern manufacturing technology the Deko D32 is safe and has a smooth and harmonic look with a stylish finish.

Touch screen technology

The DEKO D32 presents the latest technology in user interface applications in washer-disinfectors. The combined high luminance 6.5" wide angle colour TFT LCD display and control panel provides the means to view cycle information real time on the panel i.e. temperature & pressure graphs, cycle and phase name, temperature, remaining process time and a non-resettable batch number. The intelligent software provides you with advice on service actions and routine checks. The maintenance and service file system restores valuable information for technical performance follow-up and evaluation.

Pass-through models have in addition also a high brightness 4x20 character VFD information display at the unloading side to indicate remaining program time, cycle name and possible faults.

Tracking and verifying data for your Q.A Systems

In order to guarantee that the values of the critical process variables were truly obtained and as programmed, the D32 is equipped with the highest level - Class C - independent, full process verification recording system. The critical process values i.e. temperatures, times, pressures, detergent dosage time, flow & volume, errors, as well as descriptive cycle data can be independently recorded by three different means for your Quality Assurance System.

Integration of the latest Information technology allows you to review the operation online, download the process data into your server or PC by using a Flash Memory Card, or a direct Ethernet line. Additionally, you may secure your control with a paper printout by a process verification printer.

User identification and load tracking data can be inserted and downloaded into full tracking data systems by a bar code reader. A wireless bar code scanner makes this quick and easy. For your security and confidence the documented files are protected from tampering by the CheckSum program.

Archive information includes: name of your institution, date & time, operator identification, cycle number, batch number, selected cycle’s name, phase descriptions, detergent dosage stage & volume, chamber temperature throughout the process, washing pressure, faults and the CheckSum.

LARGE CAPACITY

DEKO 190 has a large wash chamber and capacity for automatic emptying and processing of 2 bedpans with lids and 4 urine bottles simultaneously. The integrated drop down shelf provides space for 4 hand wash basins or a mop bucket with seating ring. The shelf can also be utilised as a base to accommodate and process inserts and washing accessories e.g. kidney dishes, bowls, vases, toilet brushes / holders, as well as, various hollowware. Using optional holders and baskets enables the correct positioning and easy loading of various items, eg; suction jars & medicine pots, and extends the DEKO 190’s capacity and versatility.

SAFE AND SECURE

The door is locked securely throughout the cycle. A green indicator will advise when the door is unlocked for opening. An audible indicator may be added to draw attention to the ending of the cycle.

In order to guarantee that the values of the critical process variables were truly obtained and as programmed, the Deko 190 is equipped with the verification level A – independent temperature verification sensor.

Cleaning efficacy is increased by dosing automatically the precise pre-determined volume of detergent at the correct time of the wash cycle. The detergent container is safely positioned into the easily accessible housing. The intelligent control system monitors the washing pressure constantly and secures the achievement of the pre-set process values.

A low level detecting system will illuminate the red indicator to warn when the detergent volume is running low.

QUIET, EFFICIENT AND RELIABLE

The DEKO 190 occupies its space efficiently. One unit requires only W600xD630 mm of floor space. Connections to water, electricity and drain are provided with all necessary safety features. Regular control & maintenance of the machine is made quick and easy by the service mode of the microprocessor and the easily accessible components. Water is taken into the chamber from the integrated water tank. User and Maintenance Manuals include all relevant details and instructions required. Any information, advice, personnel training and service calls are attended to with the utmost dedication and urgency. Availability of spares is guaranteed for a minimum of 10 years after date of shipment and the complete programme and software lodged securely with an independent body.

Durability and reliability in continuous, heavy and busy institutional operating circumstances have been the key factors in the design of the Deko 190.
